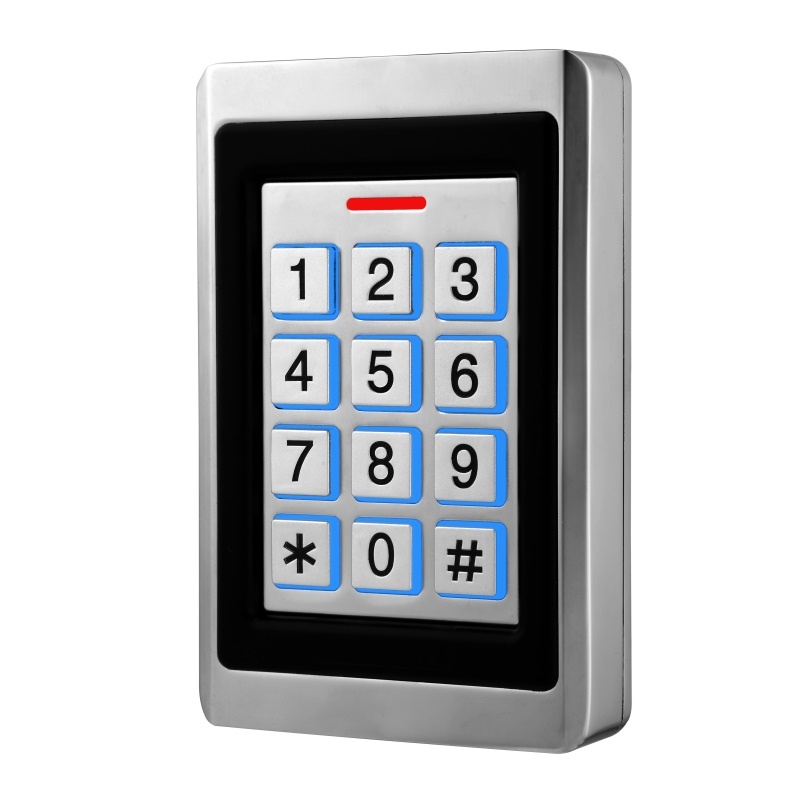

Metal Standalone Keypad Controller K9



Feature:

> Waterproof Degree: IP68

> Metal structure design, anti-vandal

> Digital backlit keyboard

> All-in-one, WG26 output / input

> User capacity: 2000 card user card, 2000 user password

> Three way to open the door, card, password, card + password

> The doorbell button and interface: buttons and isolation circuit,

> Connect to any external bell



Specification:

Product Parameter Parameter Description
Card Type EM or MF
Waterproof Degree IP68
User Capacity 2000 card user card, 2000 user password
Environment Humidity 10%~90%
Lock Output ≤3A
Working Voltage AC/DC 12 - 24V
Static Electricity ≤30mA
Alarm Output ≤20A
Output Short Circuit Protection Time ≤100μS
Card Read Distance 5~8cm
Ambient Temperature -45℃~60℃
Door Opening Time 0~99s(Adjustable)
Dimension 118*78*25mm
Unit Weight 0.75Kg
