  • Metal Standalone Keypad Controller K0
  • Metal Standalone Keypad Controller K0
Metal Standalone Keypad Controller K0 Metal Standalone Keypad Controller K0

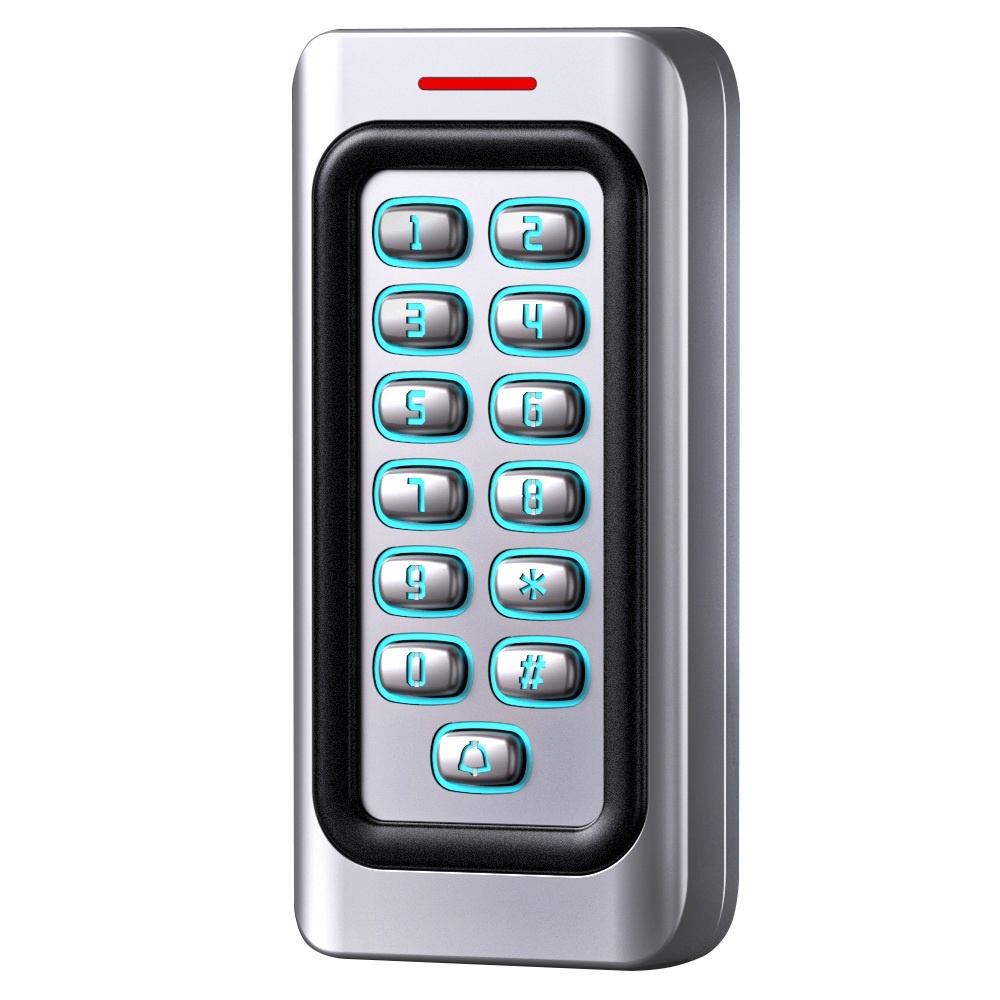

Metal Standalone Keypad Controller K0



Feature:

> Perfect design, with backlight and fashion silver finish.

> Waterproof design for outdoor use.

> A strong standalone function device can be used as a WG26 reader alone.

> Capacity: 2000 user's cards, 2000 codes.

> Access ways: cards, code, card+code.

> Low power: static current less than 30mA

> Support the keypad.

> Users can reset private passwords.

> Search fast less than 0.1S.

> Wiegand output W26 for card and w4 for codes.

> Use the keypad to delete lost cards for safety.

> Short-circuit protect: when relay or alarm output short circuit, it will shut up output in 100μS.





Specification:

Product Parameter Parameter Description
Card Type EM or MF
Waterproof Degree Non-Waterproof(K0) / IP68(K0-W)
User Capacity 2000
Environment Humidity 10%~90%
Lock Output ≤3A
Working Voltage DC12V±10%
Static Electricity ≤30mA
Alarm Output ≤20A
Output Short Circuit Protection Time ≤100μS
Card Read Distance 5~8cm
Ambient Temperature -45~60
Door Opening Time 0~99s(Adjustable)
Dimension 120*56*20mm
Unit Weight 0.51Kg
